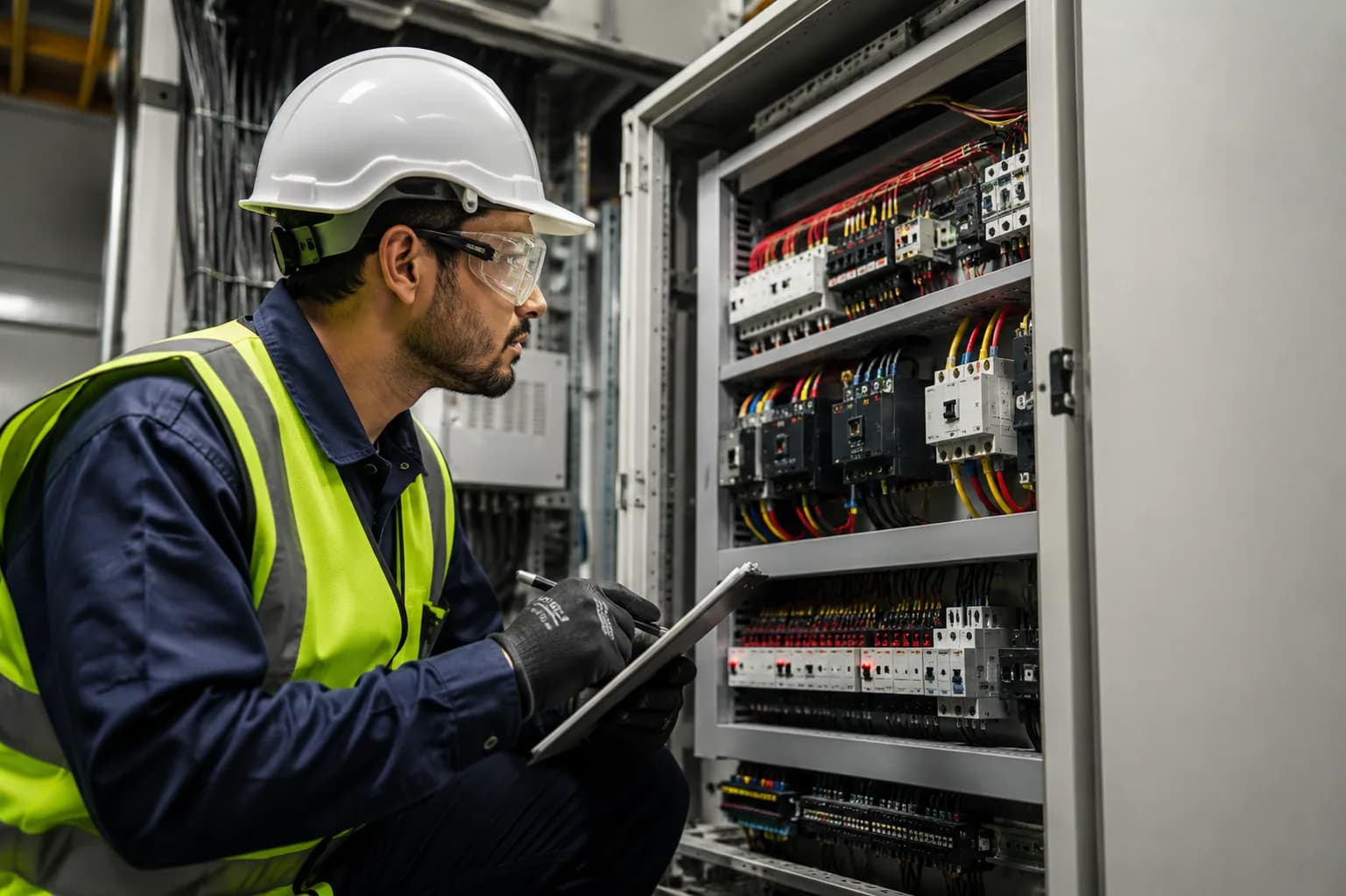

DEWA-Approved Electrical Infrastructure & LV Power Distribution
Delivering turnkey power engineering from 11kV substation civil-MEP coordination to final power outlets. Class-A certified electrical contracting ensuring rapid DEWA power energisation, zero-defect switchgear, and robust power quality across the UAE.
Electrical Systems
LV distribution from the DEWA point of supply to the final socket, delivered by a DEWA-registered contracting team.
Why Our Engineering Excels
Engineered for Reliability: Electrical in the UAE
We design and build building services that conquer extreme regional climates, prevent authority rejection cycles, and lower lifecycle operational costs.
DEWA Approval Fast-Tracking
Experienced electrical engineers managing e-submissions, Single Line Diagrams (SLD), and substation clearances without administrative delays.
Type-Tested Form 4 Switchboards
Fault-rated, type-tested MDBs and SMDBs built to IEC 61439 with segregated busbar chambers ensuring operator safety and continuous uptime.
Critical Power Redundancy
Seamless integration of standby diesel generators, Automatic Transfer Switches (ATS), and N+1 UPS systems for uninterrupted operations.
Complete Discipline Scope
Granular Scope of Works & Sub-Systems
Every sub-package is executed by dedicated certified engineers with in-house QA/QC supervision and full compliance to international and UAE authority standards.
DEWA Substation Coordination & MV/LV Switchgear
Main Point-of-Supply Power Infrastructure
End-to-end engineering of 11kV/400V substation rooms, transformer housing, and Main Distribution Boards (MDBs). We manage the complete technical interface with DEWA engineers.
Key Deliverables & Equipment Handled:
- DEWA 11kV transformer room and HV switchgear room civil-MEP coordination
- Type-Tested Form 4 Main Distribution Boards (MDBs) up to 4000A capacity
- Automatic Power Factor Correction (APFC) capacitor banks (0.95+ PF)
- DEWA tariff metering cabinets and Current Transformer (CT) chambers
- Main earthing terminals and copper earth mat grid installations
- Bus tie couplers and motorized air circuit breakers (ACB) with micro-logic trips
Sandwich Busbar Risers & Power Containment
Vertical & Horizontal High-Current Distribution
Installation of high-conductivity aluminium and copper sandwich busway systems for high-rise towers and industrial facilities, paired with heavy-duty galvanized containment networks.
Key Deliverables & Equipment Handled:
- Compact sandwich busbar trunking systems (630A to 4000A) with IP55/IP66 rating
- Plug-in tap-off units with MCCB protection for floor-by-floor distribution
- Heavy-duty return-flange perforated cable trays, ladders, and wire mesh baskets
- Epoxy powder-coated and hot-dip galvanized trunking for wet/corrosive zones
- Fire-rated intumescent barrier seals at floor and wall slab penetrations
- XLPE/SWA/LSZH multi-core low-smoke zero-halogen power cabling
Standby Generators, ATS & Clean UPS Systems
Emergency Power & Uninterruptible Backup
Design and deployment of critical emergency power generation and conditioning systems ensuring zero disruption to life safety systems, fire pumps, and IT server infrastructure.
Key Deliverables & Equipment Handled:
- UL-listed heavy-duty diesel generator sets with sound-attenuated acoustic canopies
- Automatic Transfer Switch (ATS) panels with 4-pole motorized changeover
- Generator synchronizing panels for parallel multi-engine load sharing
- True On-Line Double Conversion modular UPS systems with bypass isolation
- Underground double-wall bulk diesel fuel storage tanks with fuel transfer pumps
- Acoustic exhaust silencers and residential-grade soot filtration
Smart Lighting, DALI Controls & Central Battery (CBS)
Architectural & Civil Defence Emergency Lighting
Turnkey lighting systems combining architectural energy-efficient LED luminaires with addressable DALI-2 controls and Civil Defence certified central battery emergency backup.
Key Deliverables & Equipment Handled:
- Civil Defence approved Central Battery Systems (CBS) with addressable monitoring
- Emergency exit luminaires and escape route lighting conforming to BS 5266
- DALI-2 / 0-10V digital dimming with daylight harvesting and occupancy sensors
- Facade architectural dynamic illumination and landscape feature lighting
- Warehouse high-bay and industrial explosion-proof lighting (ATEX certified)
- Al Sa'fat compliant lighting power density (LPD) optimization
Earthing, Equipotential Bonding & Lightning Protection
Personnel Protection & Asset Safeguarding
Certified earthing grids and structural lightning protection systems ensuring total dissipation of transient surges and electrical faults in accordance with BS EN 62305.
Key Deliverables & Equipment Handled:
- Deep-drilled earthing boreholes achieving electrical resistance below 1.0 Ohm
- Exothermic cad-welded connections and copper-bonded steel earth rods
- Main and supplementary equipotential bonding for all metallic MEP services
- Faraday cage roof tape network or Early Streamer Emission (ESE) air terminals
- Type 1 + Type 2 Surge Protection Devices (SPD) installed across all main boards
- Calibrated earth loop impedance and soil resistivity testing with certified reports
Statutory Authorities
Dubai Authority Approvals & Compliance Matrix
We manage the entire approvals roadmap from initial design submittals through site inspections to final completion NOCs.
DEWA Electrical Regulations
TCL load calculations, substation design approvals, site inspection, and physical energisation.
- Single Line Diagrams (SLD)
- Connected Load Schedules
- DEWA energisation certificate
UAE Fire Code Chapter 9
Central Battery System (CBS) emergency lighting, fire pump electrical supplies, and ATS panels.
- CBS calculation reports
- Emergency lighting photometric layout
- DCD inspection NOC
Al Sa'fat Green Building Regulations
Lighting Power Density (LPD) limits and energy sub-metering compliance.
- LPD calculation sheets
- Sub-metering network architecture
- DM building permit
Sector Applications
Tailored Electrical Solutions by Facility Type
Engineering requirements differ fundamentally across sectors. Here is how our packages adapt to specific operational demands.
Commercial Office Towers
High-density tenant distribution boards with intelligent digital sub-metering and ATS backup.
- Plug-in tap-off flexibility
- DALI smart workspace dimming
- Central battery emergency CBS
Data Centers & Mission Critical
Uninterrupted clean power distribution with static transfer switches (STS) and modular UPS strings.
- Harmonic mitigation filters
- Dual busway feeds to server racks
- Transient surge suppression
Industrial Plants & Warehouses
Heavy-duty 400V power infrastructure, crane feeds, and explosion-proof containment.
- Direct-on-line & VFD motor starters
- High-capacity capacitor banks
- Outdoor substations
High-End Residential Towers & Villas
Architectural switch plates, KNX home automation integration, and electric vehicle (EV) chargers.
- DEWA-approved EV fast chargers
- Acoustic low-noise DB panels
- Surge protection
Project Delivery Cycle
Our 5-Stage Engineering & Commissioning Workflow
A structured, transparent delivery methodology ensuring code compliance, zero clashes, and on-schedule handover.
Load Calculation & DEWA NOC Submission
Calculating Total Connected Load (TCL) and Maximum Demand (MD) and submitting Single Line Diagrams (SLD) via DEWA e-portal.
BIM Coordination & Containment Layout
3D modeling of cable trays, busbar risers, and substation trenches integrated with HVAC and plumbing services.
Switchgear Fabrication & Factory Acceptance (FAT)
Assembly of type-tested Form 4 switchboards with FAT inspection witnessed by client consultants.
Site Installation, Cable Pulling & Termination
Installing containment, pulling XLPE cables, torquing busway joints, and dressing distribution boards.
Insulation Testing, DEWA Inspection & Energisation
Megger insulation resistance testing, primary/secondary injection tests, DEWA physical site inspection, meter installation, and live energisation.
Technical Standards
Engineering Criteria & Material Specifications
Direct reference of our core material standards, test thresholds, and international design codes.
| Parameter / Discipline Area | Applicable Code / Standard | Technical Notes & Criteria |
|---|---|---|
| Main Switchgear Standard | IEC 61439-1/2 | Form 4b Type-Tested assembly, fault rated up to 50kA/1s |
| Cabling Specifications | BS 5467 / BS 6724 | Copper conductor, XLPE insulated, LSZH low-smoke zero-halogen sheathed |
| Power Factor Target | DEWA Regulations | Maintained above 0.95 lagging via automatic micro-processor capacitor steps |
| Earth Resistance | DEWA & BS 7671 | Main earth grid resistance < 1.0 Ohm; verified by fall-of-potential test |
| Emergency Lighting Duration | DCD & BS 5266 | Minimum 3 hours battery autonomy under mains failure conditions |
Proven Track Record
Related Case Studies & Technical Insights
Explore verified projects and deep-dive engineering articles related to Electrical.
Reference Projects in UAE
View all projects→Bay Crest Residences
Full MEP package for a G+42 residential tower with district cooling interface, two-level basement car park ventilation and a rooftop amenity deck.
Dubai South Logistics Hub
Four warehouse units with high-bay lighting, ESFR sprinkler protection, 11kV substation coordination and temperature-controlled cold rooms.
DIFC Grade-A Office Floors
Six occupied office floors re-serviced with VAV zoning, a resilient UPS-backed data room and full smart-building metering.
Technical Engineering Guides
Browse all articles→DEWA energisation: the approval chain behind your switch-on date
Energisation is not one application. It is a chain of dependent approvals, each waiting on a predecessor you may not control. Here is the order things actually have to happen in, and the four places a Dubai project usually loses a fortnight.
Reading an MEP BOQ: the line items that decide whether the price holds
Most MEP tender losses and most MEP variations trace back to the same dozen lines. What to interrogate before the bill is signed — whether you are pricing it or receiving the price.
Sequencing a live cutover in an occupied Dubai tower
Retrofit programmes fail on interruption, not on engineering. How to plan a chiller replacement or a riser upgrade so the building keeps trading and the residents keep their water.
Frequently Asked Questions on Electrical
Key insights into Dubai authority timelines, engineering sizing, cost drivers, and execution standards.
Have a Project Specific Inquiry?
Speak directly with our Grade-A MEP consultants and BIM engineers today.
Talk to an EngineerThe process consists of: (1) Submitting architectural/MEP drawings and load calculations for DEWA design NOC; (2) Coordinating the 11kV transformer room civil and ventilation details; (3) Preparing and submitting the Single Line Diagram (SLD) for approval; (4) Installing approved switchgear, earthing, and containment; (5) Submitting the technical completion certificate; (6) Passing the DEWA site engineer's physical inspection; and (7) Settling connection charges followed by meter installation and live power energisation.
DEWA regulations mandate that building power factor be maintained at 0.95 or higher. Low power factor caused by inductive loads (chiller compressors, pump motors, transformers) draws reactive current, wasting electrical capacity and generating utility penalty surcharges on electricity bills. Automatic capacitor banks dynamically correct the power factor.
Sandwich busbar trunking requires significantly less shaft space than dozens of heavy XLPE cables, exhibits lower voltage drop over long vertical runs, and allows convenient plug-in tap-off boxes on every floor. It also delivers superior short-circuit fault ratings and simplifies future tenant power upgrades.
Self-contained lights carry individual NiCd/lithium batteries inside each fixture, which deteriorate quickly under Dubai's high ambient temperatures and require individual testing. A Central Battery System (CBS) powers all emergency and exit luminaires from a central air-conditioned battery room, featuring automated addressable testing, 10-year+ battery life, and complete compliance with Dubai Civil Defence regulations.
Prior to DEWA inspection and energisation, we perform: (1) Megger insulation resistance testing (1000V/2500V); (2) High-pot dielectric withstand tests; (3) Contact resistance (ducter) tests on circuit breaker poles and busbar joints; (4) Primary and secondary current injection tests on protection relays; (5) Earth electrode resistance fall-of-potential tests; and (6) Phase rotation and polarity verification.
